Specifications:
-
- Buck Boost transformer: 3.2 KVA, 3 PH, 60 Hz, P/N 19407N
- Input: 208 VAC L-L, 8.88 Amps
- Output: 230 VAC L-L, 8.04 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Indoor enclosure with louver: 17”L x 9.5”H x 9.5”W
- Estimated weight: 60 lbs.

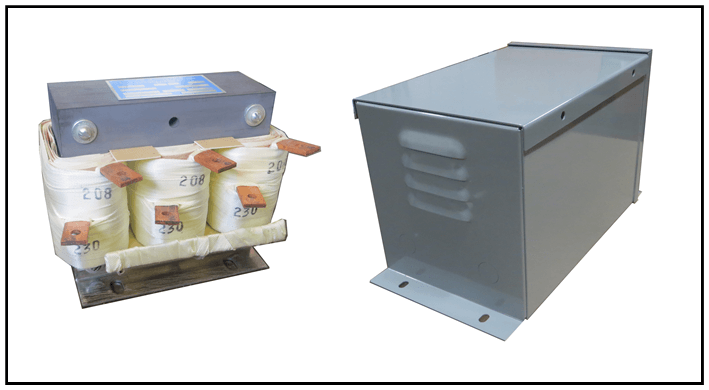

The photos of the transformer and the enclosure is shown below:

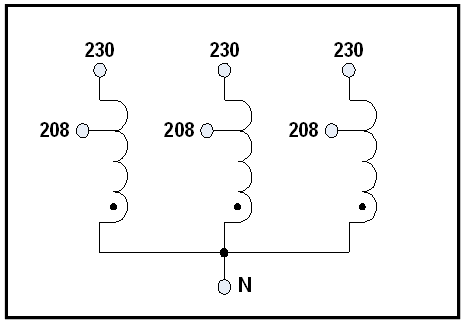

The schematic diagram is shown below:

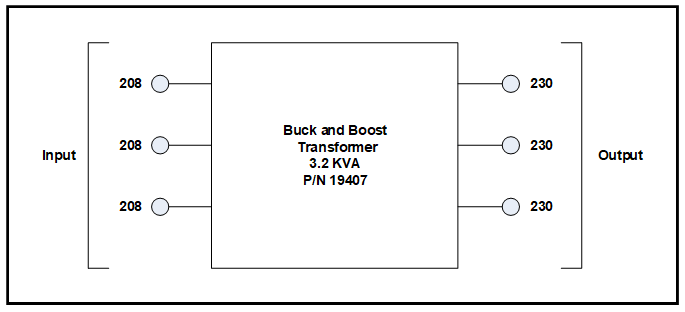

The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
