Specifications:

• Dry Type Transformer, 200 KVA, 3 PH, 60 Hz, P/N MG-200
• Primary: 690 VAC L-L, Delta
• Primary Taps: 2-2.5% FCAN and 4-2.5% FCBN
• Secondary: 480 VAC L-L Wye with a neutral, 277 VAC L-N
• Copper Windings
• Approvals: UL / CSA listed
• Temperature Rise: 150 degrees C
• Totally Enclosed Non-Ventilated (TENV) Enclosure, NEMA 4X, SS 304, Non-Painted
• Enclosure Dimensions: 50.50″W x 32.00″D x 66″H
• Estimated Weight: 1600 lbs.

The schematic diagram of the transformer is shown below:

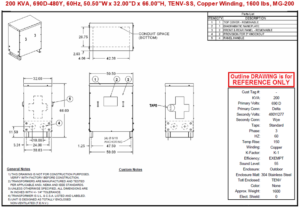

The details of the enclosure are shown below:

The photo of the enclosure is shown below:
