Specifications:

• Dry Type Substation Transformer, 1000 KVA, 3 PH, 60 Hz, P/N MG-199
• Primary: 13800 VAC L-L, Delta
• Primary Taps: 2-2.5% FCAN and 2-2.5% FCBN
• Secondary: 480 VAC L-L, Wye, 277 VAC L-N
• Aluminum Windings
• Approvals: UL / CSA listed
• Temperature Rise: 150 degrees C
• Dust protection: Cooling vents with externally replaceable dust filters
• Outdoor Enclosure: 92″H x 90″W x 56″D
• 8’H x 8’L x 5”W, customer needs a bigger flatbed than 4′ x 5′
• Estimated Weight: 8600 lbs.

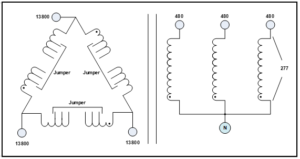

The schematic diagram of the transformer is shown below:

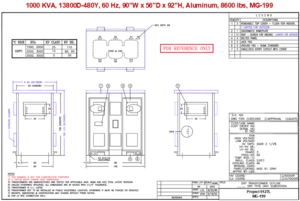

The details of the enclosure are shown below:

The photo of the enclosure is shown below:
