Specifications:

  • Dry Type Transformer, 750 KVA, 3 PH, 60 Hz, P/N MG-170
  • Primary: 575 VAC L-L, Delta
  • Primary Taps: 2-2.5% FCAN and 2-2.5% FCBN
  • Secondary: 480 VAC L-L, Delta
  • Aluminum Windings
  • Approvals: UL / CSA listed
  • K Factor: K-1
  • Temperature Rise: 150 degrees C
  • NEMA 3R Enclosure, 80.25″H x 64.00″W x 50″D
  • Estimated Weight: 3800 lbs.

The schematic diagram is shown below:

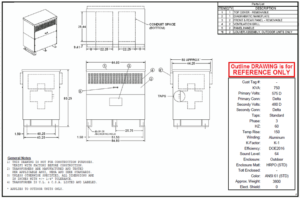

The details of the enclosure are shown below:





The photo of the enclosure is shown below:





All our  transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
