Specifications:

• Dry Type Transformer, 50 KVA, 1 PH, 60 Hz, P/N MG-157
• Primary (1, 2): 600 VAC L-L
• Secondary (3 to 6): 120 / 240 VAC
• Input and Output are reversible
• Dual Coil Construction
• Aluminum Windings
• Approvals: UL / CSA listed
• Temperature Rise: 150 degrees C
• Indoor/Outdoor Enclosure: 32″H x 26.5″W x 17″D
• Estimated Weight: 415 lbs.

The schematics diagram of the transformer is shown below:

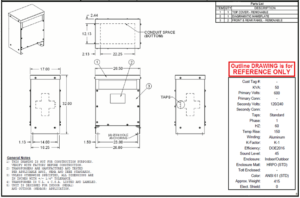

The details of transformer are shown below:



To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
