Specifications:

• Dry Type Transformer, 440 KVA, 3 PH, 60 Hz, P/N MG-159
• Primary: 460 VAC L-L, Delta
• Primary Taps: 2-2.5% FCAN and 4-2.5% FCBN
• Secondary: 460 VAC L-L Wye with a neutral, 266 VAC L-N
• 5 % Nominal Impedance
• Aluminum windings
• Approvals: UL / CSA listed
• Temperature rise: 150 degrees C
• Indoor Enclosure: 66.00″H x 50.50″W x 40.50″D
• Estimated shipment weight: 2950 lbs.

The schematic diagram of the transformer is shown below:

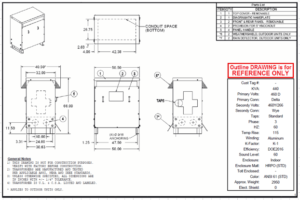

The details of the enclosure are shown below:





The photo of the enclosure is shown below:





All our  transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
