Specifications:

  • Dry Type Transformer, 100 KVA, 3 PH, 50/60 Hz, P/N MG-153
  • Primary: 415 VAC L-L, Delta
  • Primary Taps: 2-2.5% FCAN and 4-2.5% FCBN
  • Secondary: 415 VAC L-L Wye with a neutral, 240 VAC L-N
  • Copper windings
  • Electrostatic Shield included
  • Approvals: CSA / UL listed
  • Temperature rise: 150 degrees C
  • Indoor/Outdoor Enclosure: 40.50″H x 31.50″W x 21.75″D
  • Unit will be crated in an export packaging wooden box
  • Estimated shipment weight: 1000 lbs. or TBD

The schematic diagram of the transformer is shown below:

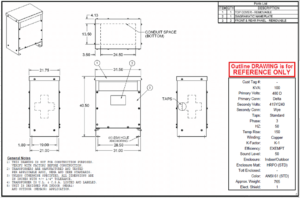

The details of the enclosure are shown below:





The photo of the enclosure is shown below:





All our  transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at info@lcmagnetics.com.
