Specifications:

  • Dry Type Transformer, 60 KVA, 3 PH, 60 Hz, P/N MG-131
  • Primary: 480 VAC L-L, Delta
  • Primary Taps: 2-2.5% FCAN and 2-2.5% FCBN
  • Secondary: 480 VAC L-L Wye with a neutral, 277 VAC L-N
  • Copper windings
  • Approvals: CSA / UL listed
  • Temperature rise: 150 degrees C
  • Totally Enclosed Non-Ventilated (TENV) Stainless Steel NEMA 4X Enclosure
  • Enclosure Dimensions: 40.50″H x 36.50″W x 21.75″D
  • Estimated weight: 555 lbs.

The schematic diagram is shown below:

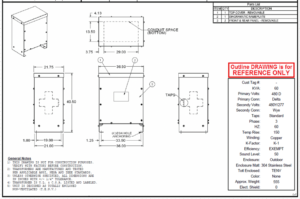

The details of the enclosure are shown below:







The photo of the enclosure is shown:





All our three phase transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at info@lcmagnetics.com.
