Specifications:

• Dry Type Transformer, 30 KVA, 3 PH, 60 Hz, P/N MG-92-12
• Primary: 230 VAC L-L, Delta
• Primary taps: 2-2.5% FCAN and 4-2.5% FCBN
• Secondary: 380 VAC L-L, Wye, 219 VAC L-N
• Aluminum windings
• Approvals: CSA / UL listed
• K-Factor: K-1
• Temperature rise: 150 degrees C
• NEMA 3R Enclosure: 32.50″H x 26.50″W x 17.00″D
• Estimated weight: 335 lbs.

The schematic diagram is shown below:

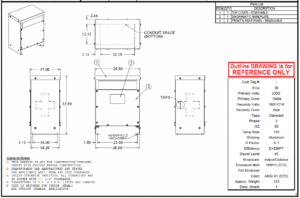

Details of the enclosure are shown below:





The photo of the enclosure is shown below:
