Specifications:

  • High Current Transformer, 4 KVA, 1 PH, 60 Hz, P/N 19123
  • Primary: 480 VAC, 8.33 Amps
  • Secondary: 8 VAC, 500 Amps
  • Copper winding construction
  • Primary copper bus bars are 1/8″ x 5/8″ with one hole
  • Secondary copper bus bars are 1 1/2″ x 1/4″ with one hole
  • Open core & coil, 9″H x 9″W x 9″D approximately
  • Weight: 70 lbs approximately

The photo of the transformer is shown below:

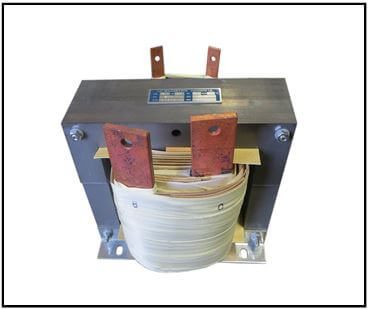

19123

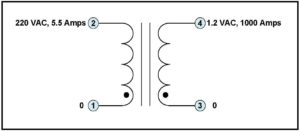

The schematic of the transformer is shown below:
Schematic, PN 19092
All our high current transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at info@LCMAGNETICS.COM.
