ZIG ZAG TRANSFORMER 180 KVA, 3 PH, 60 HZ, P/N 10038L
Our engineering team will conduct an inspection and design based on your existing transformer to replace it with a new custom transformer specifically engineered and manufactured by L/C Magnetics. High current transformers are specialized instruments crafted to precisely measure and convert elevated current levels, thereby enhancing monitoring and protection with in various electrical systems. We are pleased to present a special offer on our Zig Zag Transformer 180 KVA. Should you have different requirements, please do not hesitate to contact us.
Specifications:
- Zig Zag Transformer: 180 KVA, 3 PH, 60 Hz, P/N 10038L
- Primary: 600 VAC L-L, 173 Amps
- Secondary: 600 VAC L-L, 173 Amps
- Aluminum windings
- Zero Sequence Impedance: 89 milliohm per phase (4.5 %)
- X/R: ≥ 4
- BIL: 10 KV
- Core: Silicon Steel
- Cooling: AN
- No Load Loss (Ref): 380 W
- Load Loss at 85°C (Ref): 500 W
- Efficiency at 85°C: 98 %
- IP 23 Enclosure
- Estimated Dimensions: 52” H x 63” W x 30” H or TBD
- Estimated weight: 1760 lbs or TBD

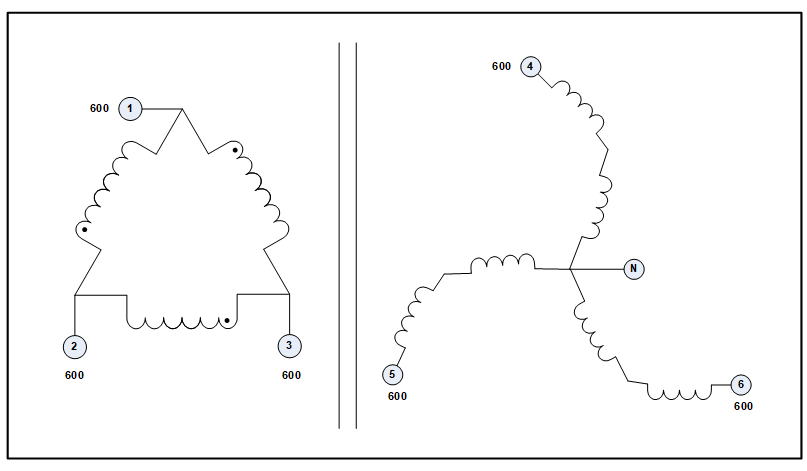

The schematic diagram is shown below:
