THREE PHASE ISOLATION TRANSFORMER, 9 KVA, P/N 19428N - L/C Magnetics

THREE PHASE ISOLATION TRANSFORMER
9 KVA, P/N 19428N

Specifications:

Isolation Transformer, 9 KVA, 3 PH, 50 Hz, P/N 19428N
Primary: 415 VAC L-L, 12.5 Amps, Delta
Secondary: 208 VAC L-L, 25 Amps, Wye with a neutral N
Copper winding construction
Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
Indoor enclosure, 24”H x 18”W x 16”D
Estimated weight: 250 lbs.

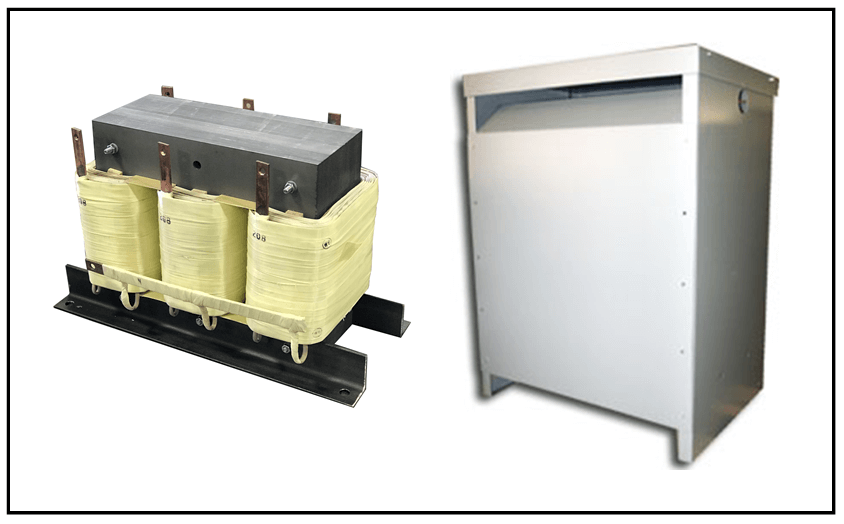

The photos of the transformer and the enclosure are shown below:

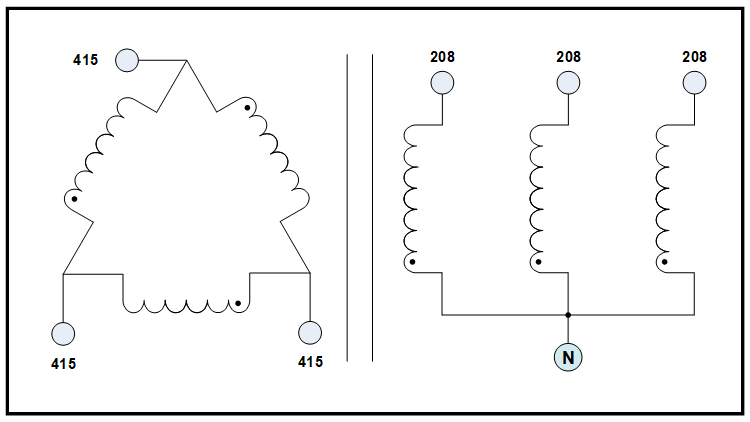

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
