THREE PHASE ISOLATION TRANSFORMER
5 KVA, P/N 19462N

Specifications:

Isolation Transformer, 5 KVA, 3 PH, 60 Hz, P/N 19462N
Primary: 208 VAC L-L, 14 Amps, Delta
Secondary: 575 VAC L-L, 5 Amps, Wye with a neutral N
Copper winding construction
Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
Indoor enclosure with louver: 17”L x 11.5”W x 9.5”H
Estimated weight: 120 lbs.

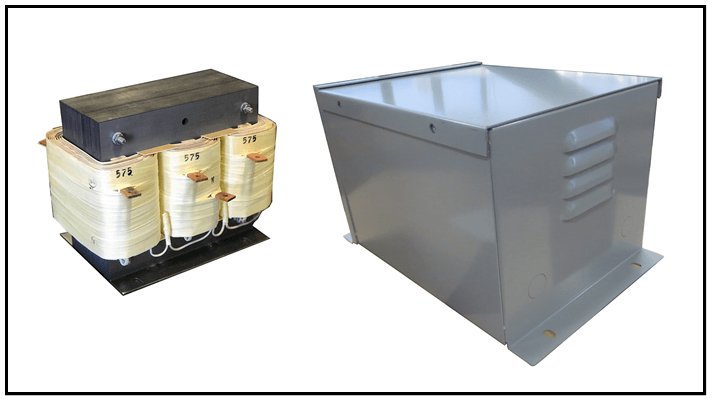

The photos of the transformer and the enclosure are shown below:

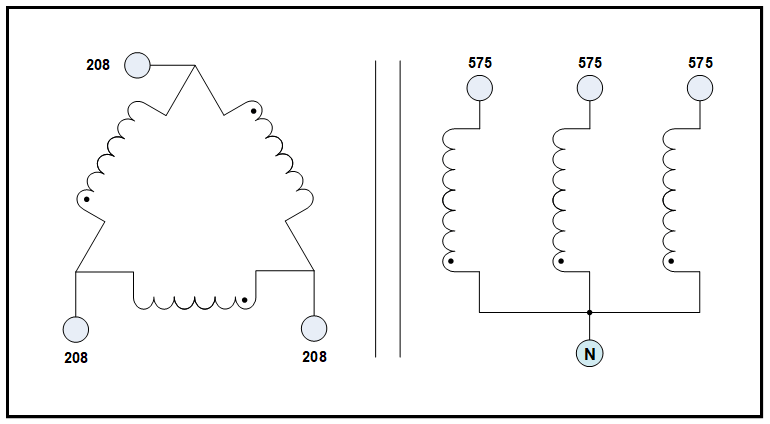

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
