THREE PHASE ISOLATION TRANSFORMER
5 KVA, P/N 19418

Specifications:

• Isolation Transformer, 5 KVA, 3 PH, 60 Hz, P/N 19418
• Primary: 480 VAC L-L, 6 Amps, Delta
• Secondary: 400 VAC L-L, 7.22 Amps, Wye with a neutral N
• Copper winding construction
• Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
• Open core and coil: 15”W x 15”H x 11”D approximately
• Estimated weight: 100 lbs.

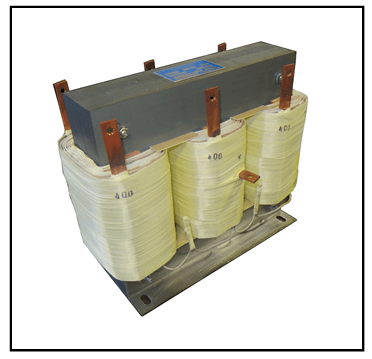

The photos of the transformer is shown below:

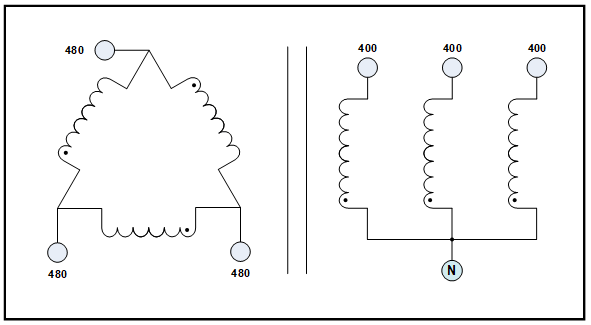

The schematic diagram is shown below:
