THREE PHASE ISOLATION TRANSFORMER
40 KVA, P/N 19299

Specifications:

Isolation Transformer, 40 KVA, 3 PH, 60 Hz, P/N 19299
Primary: 480 VAC L-L, 48 Amps, Delta
Secondary: 171 VAC L-L, 98.73 VAC L-N, 135 Amps, Wye, 3 PH
Secondary: 120 VAC L-N, 10 Amps, 1 PH
Copper winding construction
Primary copper bus bars are 5/8” x 1/8” with one hole
Secondary copper bus bars are 1” x 1/4” with one hole
Open core and coil: 15”H x 15”W x 15”D approximately
Estimated weight: 400 lbs.

The photos of the transformer is shown below:

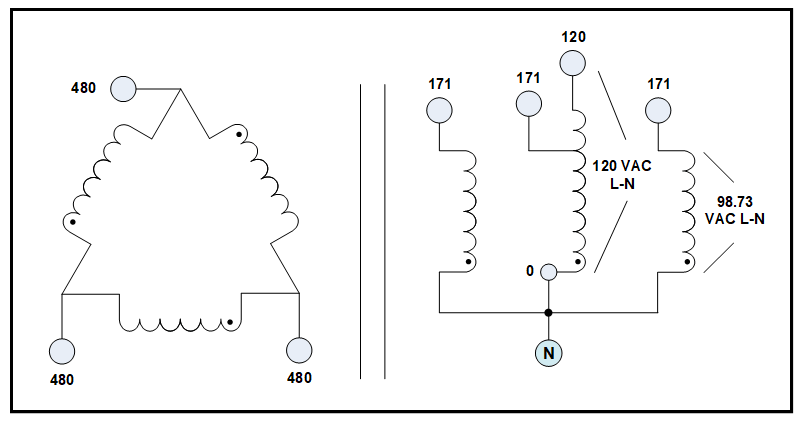

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
