THREE PHASE ISOLATION TRANSFORMER
4 KVA, P/N 19396N

Specifications:

  • Isolation Transformer, 4 KVA, 3 PH, 60 Hz, P/N 19396N
  • Primary: 208 VAC L-L, 11.1 Amps, Delta
  • Secondary: 60 VAC L-L, 38.5 Amps, Wye with a neutral N
  • Copper winding construction
  • Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
  • Indoor enclosure: 17”L x 11.5”W x 9.5”H
  • Estimated weight: 100 lbs.

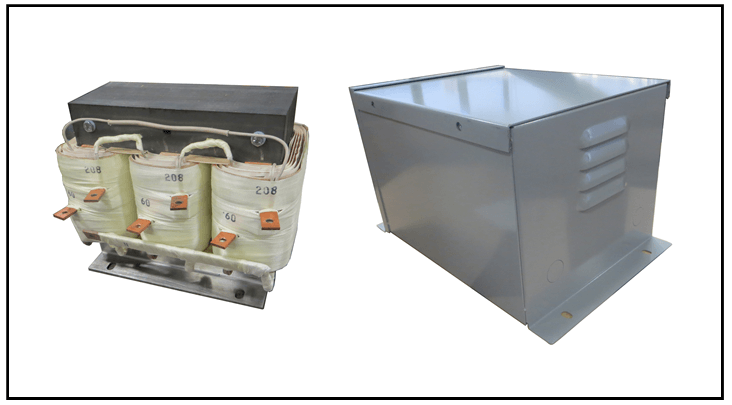

The photos of the transformer is shown below:

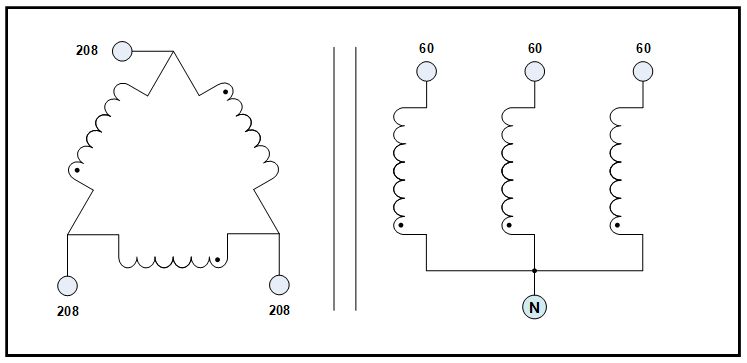

The schematic diagram is shown below:





To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
