THREE PHASE ISOLATION TRANSFORMER
36 KVA, P/N 19308N

Specifications:

Isolation Transformer, 36 KVA, 3 PH, 60 Hz, P/N 19308N
Primary: 208 VAC L-L, 100 Amps, Delta
Secondary: 325 VAC L-L, 64 Amps, Wye with a neutral
Copper winding construction
Primary copper bus bars are 1/4” x 1” with one hole
Secondary copper bus bars are 1/8” x 5/8” with one hole
Indoor enclosure: 24”H x 18”W x 16”D
Estimated weight: 400 lbs.

The photos of the transformer is shown below:

The schematic diagram is shown below:

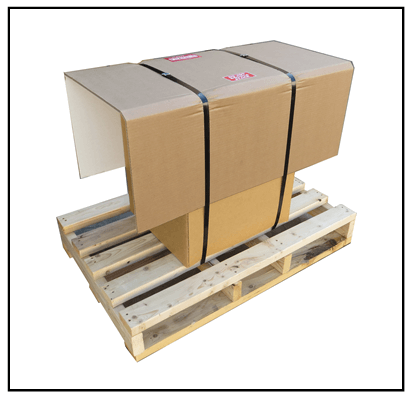

Photo of the unit before shipment is shown below. Each pallet is 450 lbs.

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
