THREE PHASE ISOLATION TRANSFORMER
18 KVA, P/N 19377N

Specifications:

Isolation Transformer, 18 KVA, 3 PH, 60 Hz, P/N 19377N
Primary: 480 VAC L-L, 22 Amps, Delta
Secondary: 400 VAC L-L, 26 Amps, Wye with a neutral N
Copper winding construction
Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
Indoor: 24”H x 18”W x 16”D approximately
Estimated weight: 350 lbs.

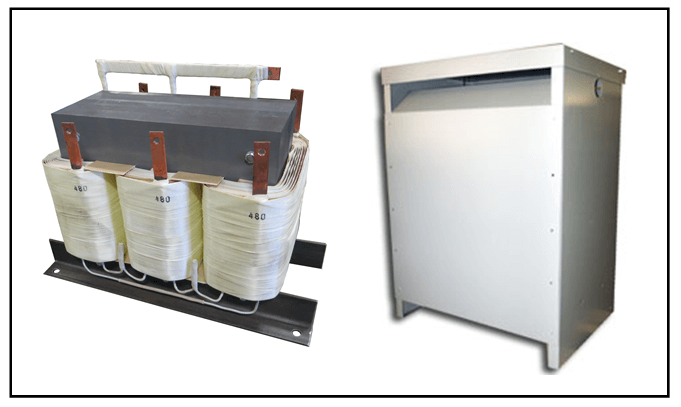

The photo of the transformer and the enclosure is shown below:

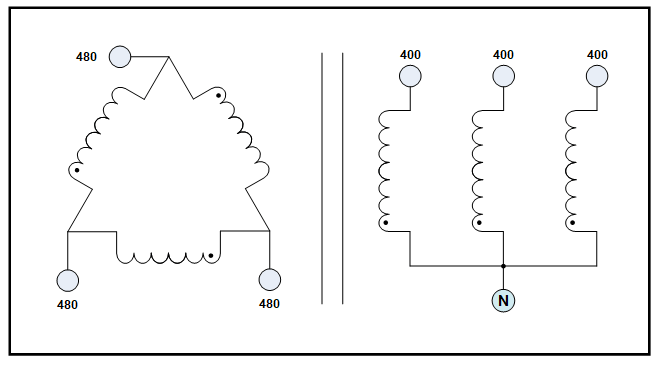

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
