THREE PHASE ISOLATION TRANSFORMER
0.58 KVA, P/N 19430N

Specifications:

• Isolation Transformer, 0.58 KVA, 3 PH, 60 Hz, P/N 19430N
• Primary: 150 VAC L-L, 2.24 Amps, Delta
• Secondary: 220 VAC L-L, 1.53 Amps, Wye with a neutral N
• Copper winding construction
• Primary and secondary connections are J-lugs
• Indoor enclosure, 17”L x 9.5”H x 9.5”W
• Estimated weight: 70 lbs.

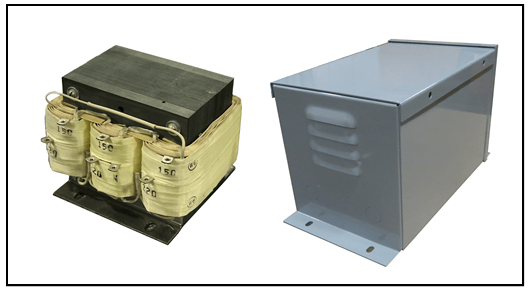

The photos of the transformer and the enclosure are shown below:

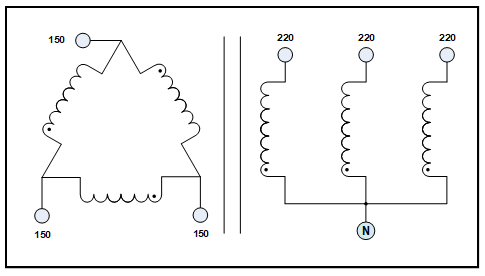

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
