THREE PHASE ISOLATION TRANSFORMER
0.5 KVA, P/N 19345

Specifications:

• Isolation Transformer, 0.5 KVA, 3 PH, 60 Hz, P/N 19345
• Primary: 480 VAC L-L, 0.6 Amps, Delta
• Secondary: 208 VAC L-L, 1.38 Amps, Wye with a neutral N
• Copper winding construction
• Primary and secondary copper connections are J-lugs
• Open core and coil: 7”W x 6”H x 6”D approximately
• Estimated weight: 55 lbs.

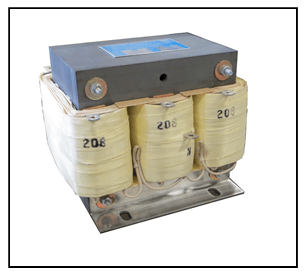

The photo of the transformer is shown below:

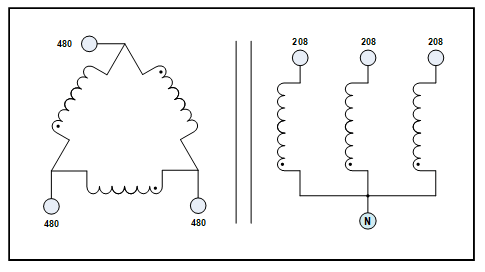

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
