THREE PHASE ISOLATION TRANSFORMER
0.5 KVA, P/N 19567N

Specifications:

• Isolation Transformer, 0.5 KVA, 3 PH, 60 Hz, P/N 19567N
• Primary (1, 2, 3): 440 VAC L-L, 0.66 Amps, Delta
• Secondary (4, 5, 6): 400 VAC L-L, 0.72 Amps, Delta
• Copper windings
• Approvals: None
• Primary and secondary connections are J-lugs
• Indoor enclosure with louver, 17”L x 9.5”H x 9.5”W
• Shipping weight: 70 lbs. approximately

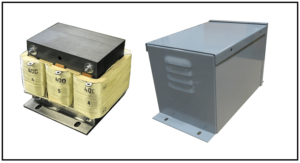

The photo of the transformer and the enclosure is shown below:

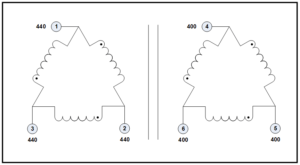

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
