THREE PHASE AUTO TRANSFORMER, 50 KVA
INPUT 240 VAC, OUTPUT 480 VAC, P/N 19538N

Specifications:

    • Buck Boost transformer: 50 KVA, 3 PH, 60 Hz, P/N 19538N
    • Input: 240 VAC L-L, 120 Amps
    • Output: 480 VAC L-L, 60 Amps
    • Copper winding construction
    • Input/output copper bus bars are 1/4” x 1” with one hole
    • Indoor enclosure: 24”H x 18”W x 16”D
    • Estimated weight: 350 lbs.

The photos of the transformer and the enclosure is shown below:

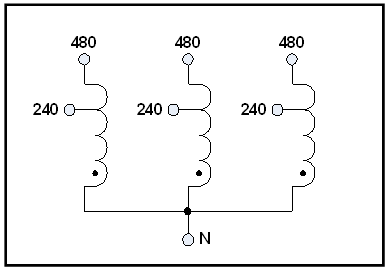

The schematic diagram is shown below: Neutral is not available for any connection.

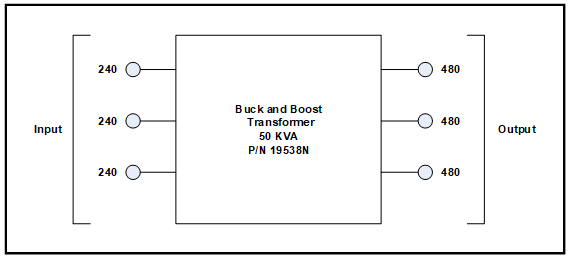

The input/output connection block diagram is shown below:
