THREE PHASE AUTO TRANSFORMER, 26.5 KVA
INPUT 480 VAC, OUTPUT 380 VAC, P/N 19471
Specifications:
- Buck Boost transformer: 26.5 KVA, 3 PH, 60 Hz, P/N 19471
- Input: 480 VAC L-L, 32 Amps
- Output: 380 VAC L-L, 40 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Open core & coil: 14.5”W x 12”H x 7”D
- Estimated weight: 120 lbs.

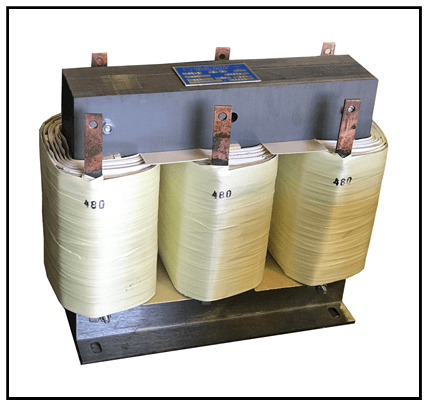

The photo of the transformer is shown below:

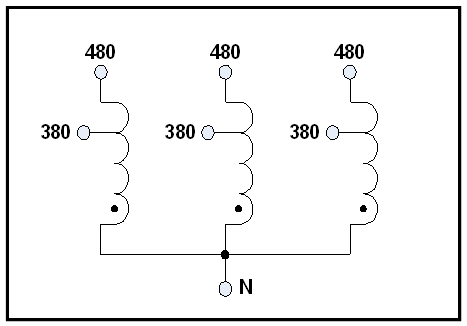

The schematic diagram is shown below:

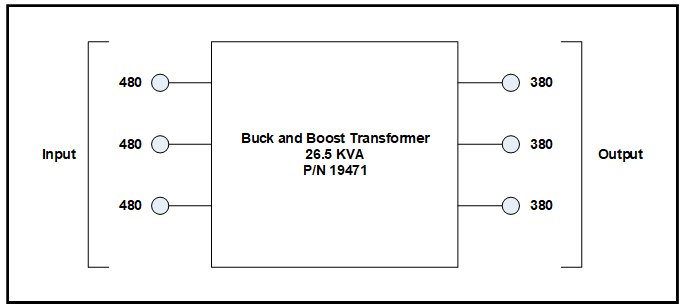

The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
