THREE PHASE AUTO TRANSFORMER, 6 KVA
INPUT 240 VAC, OUTPUT 480 VAC, P/N 19463

Specifications:

• Buck Boost transformer: 6 KVA, 3 PH, 60 Hz, P/N 19463
• Input: 240 VAC L-L, 14.44 Amps
• Output: 480 VAC L-L, 7.22 Amps
• Copper winding construction
• Input/output copper bus bars are 1/8” x 5/8” with one hole
• Open core & coil: 11”W x 8.25”H x 9”D
• Estimated weight: 70 lbs.

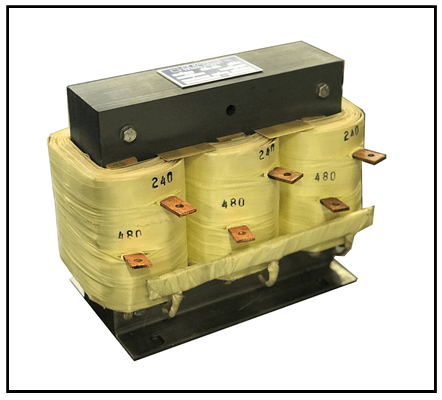

The photo of the transformer is shown below:

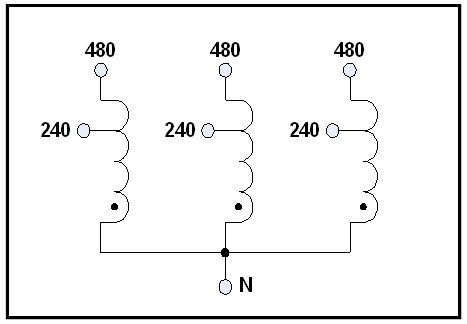

The schematic diagram is shown below:

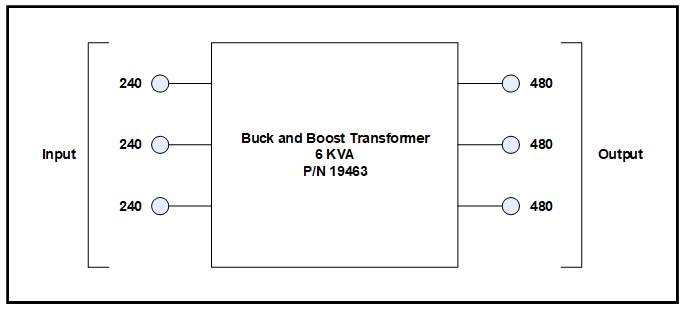

The input/output connection block diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
