THREE PHASE BOOST TRANSFORMER, 500 KVA
INPUT 480 VAC, OUTPUT 440 VAC, P/N 19384N
Specifications:
- Buck Boost transformer: 500 KVA, 3 PH, 60 Hz, P/N 19384N
- Input: 480 VAC L-L, 602 Amps
- Output: 440 VAC L-L, 656 Amps
- Copper winding construction
- Input/output copper bus bars are 1/4” x 2” with one hole
- Indoor enclosure, 36”H x 28”W x 18”D
- Estimated weight: 500 lbs.

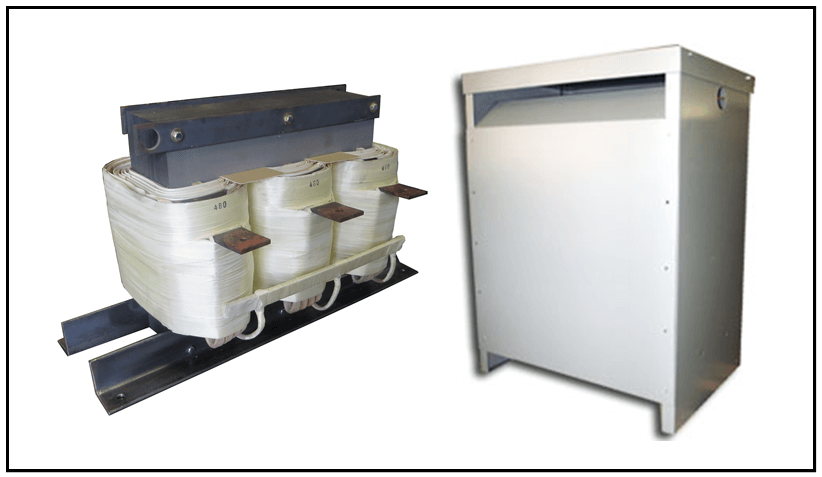

The photos of the transformer and the enclosure is shown below:
The schematic diagram is shown below:65

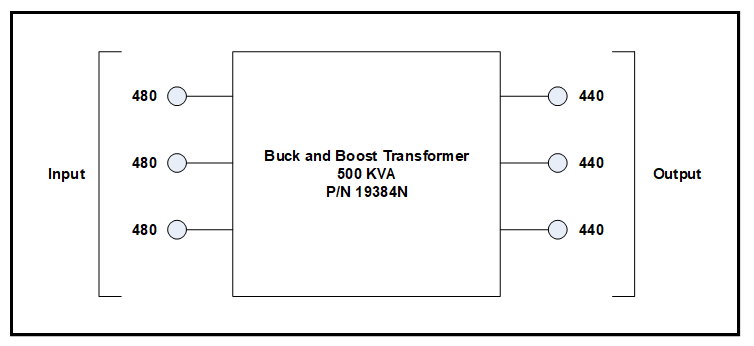

The input/output connection block diagram is shown below:
