THREE PHASE AUTO TRANSFORMER, 4 KVA
INPUT 480 VAC, OUTPUT 400 VAC, P/N 19410A
Specifications:
- Buck Boost transformer: 4 KVA, 3 PH, 60 Hz, P/N 19410A
- Input: 480 VAC L-L, 4.81 Amps
- Output: 400 VAC L-L, 5.77 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Open core & coil: 7”W x 6”H x 7”D approximately
- Estimated weight: 50 lbs.
The photos of the transformer is shown below:

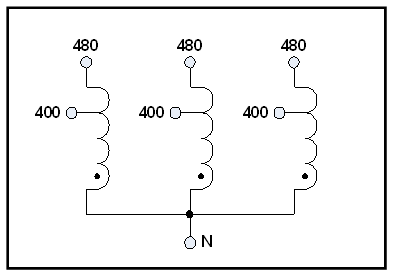

The schematic diagram is shown below:

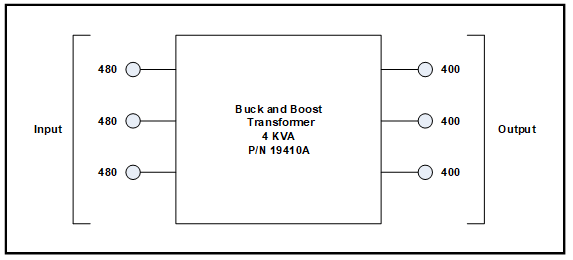

The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
