THREE PHASE AUTO TRANSFORMER, 3.2 KVA
INPUT 208 VAC, OUTPUT 230 VAC, P/N 19407N
Our engineering team can design Buck Boost Transformers based on your existing transformer or your specifications for a new custom transformer specifically engineered and manufactured by L/C Magnetics. We offer a wide range of Buck and Boost Transformers designed to efficiently adjust voltage levels for various applications. These transformers are unique because they have efficient under-voltage and over-voltage conditions compared to an isolation transformer. Buck Boost Transformers, also known as Auto Transformers, operate by sharing a part of the primary and secondary windings. This design allows them to achieve voltage adjustment with minimal power consumption compared to a standard transformer of equivalent capacity. However, they are not suitable for full voltage transformation like traditional step-up or step-down transformers. A prime example of our Buck and Boost Transformers is our Three Phase Auto Transformer 3.2 KVA.
Specifications:
- Buck Boost transformer: 3.2 KVA, 3 PH, 60 Hz, P/N 19407
- Input: 208 VAC L-L, 8.88 Amps
- Output: 230 VAC L-L, 8.04 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Open core & coil: 7”W x 6”H x 6”D approximately
- Estimated weight: 30 lbs.
Price: $ 1452.00
Lead time: 4 weeks ARO, FOB Anaheim.
Call 714-624-4740 to order for similar products.
We can redesign if your requirements are different.

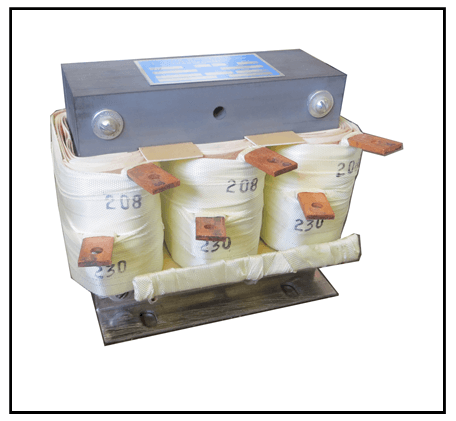

The photo of the transformer is shown below:
The schematic diagram is shown below:
The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
