THREE PHASE AUTO TRANSFORMER, 16 KVA
INPUT 415 VAC, OUTPUT 230 VAC, P/N 19412N-1
Specifications:
- Buck Boost transformer: 16 KVA, 3 PH, 50 Hz, P/N 19412N-1
- Input: 415 VAC L-L, 23 Amps
- Output: 230 VAC L-L, 40 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Indoor enclosure, 24”H x 18”W x 16”D
- Estimated weight: 225 lbs.

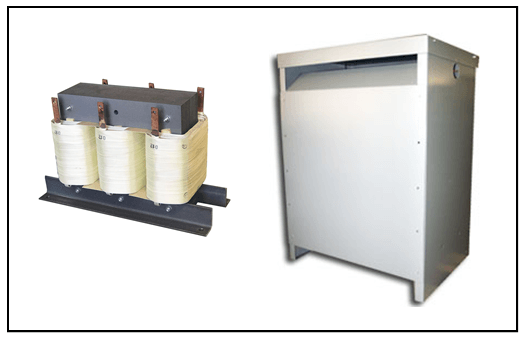

The photos of the transformer and the enclosure is shown below:
The schematic diagram is shown below:

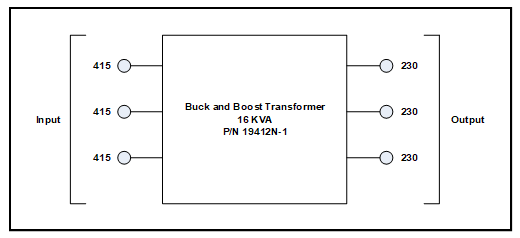

The input/output connection block diagram is shown below:
