THREE PHASE AUTO TRANSFORMER, 25 KVA
INPUT 208 VAC, OUTPUT 220 VAC, P/N 19497N

Specifications:

Auto transformer: 25 KVA, 3 PH, 60 Hz, P/N 19497N
Input: 208 VAC L-L, 69.4 Amps
Output: 220 VAC L-L, 65.6 Amps
Copper windings
Input/output copper bus bars are 1/8” x 5/8” with one hole
Indoor enclosure with louver, 17”L x 11.5”W x 9.5”H
Estimated weight: 80 lbs.

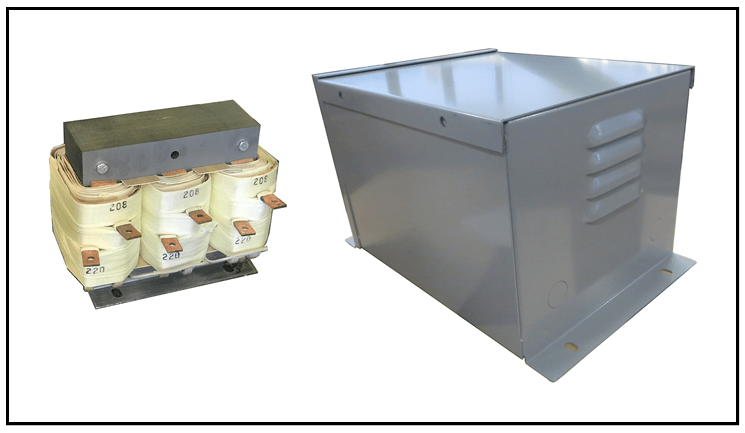

The photo of the transformer and the enclosure is shown below:

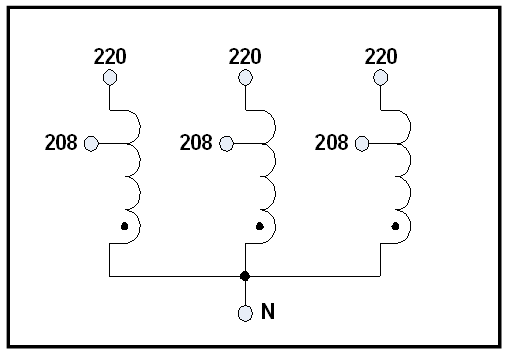

The schematic diagram is shown below:

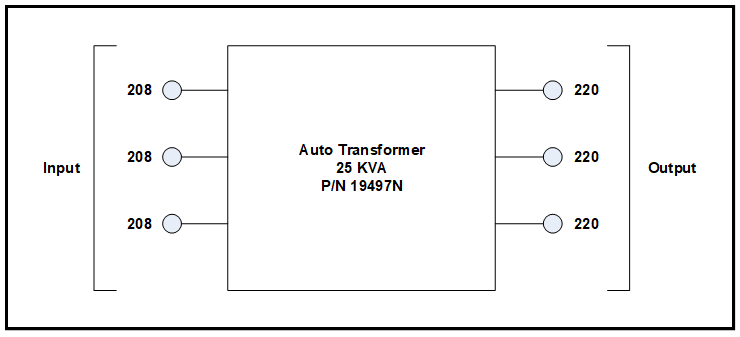

The input/output connection block diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
