STEP DOWN TRANSFORMER, 1.5 KVA, PRIMARY 240 VAC, SECONDARY 110 VAC, P/N 19272-1 - L/C Magnetics

STEP DOWN TRANSFORMER, 1.5 KVA
PRIMARY 240 VAC, SECONDARY 110 VAC
P/N 19272-1

Specifications:

Transformer, 1.5 KVA, 1 PH, 60 Hz, 19272-1
Primary: 240 VAC, 6.25 Amps
Secondary: 110 VAC, 14 Amps
Copper winding construction
Copper bus bars are 1/8″ x 5/8″ with one hole
Open core and coil: 7.5″H x 7.5″W x 7.5″D

The photos of the transformer is shown below:

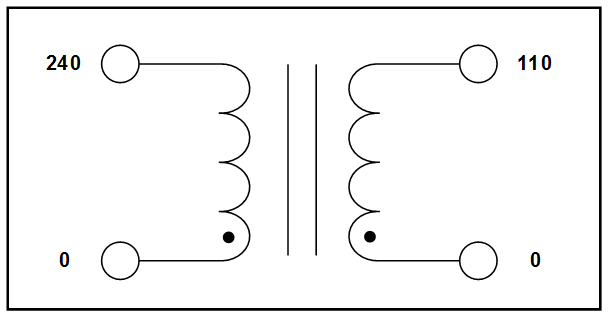

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
