SINGLE PHASE MULTI TAP TRANSFORMER
8.5 KVA, P/N 18186N

Specifications:

• Multi Tap Transformer, 8.5 KVA, 1 PH, 60 Hz, P/N 18186N
• Primary (X1, X2, X3, X4): 0 / 108 / 114 / 120 VAC, 71 Amps max
• Secondary: 48 VAC, 178 Amps
• Copper windings
• Approvals: None
• Primary connections are compression lugs
• Secondary copper bus bars are 1/4” x 1” with one hole
• Indoor enclosure with louver: 17”L x 9.5”H x 9.5”W
• Estimated weight: 120 lbs.

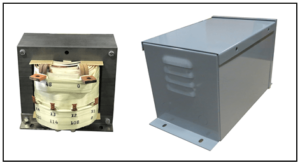

The photo of the transformer and the enclosure is shown below:

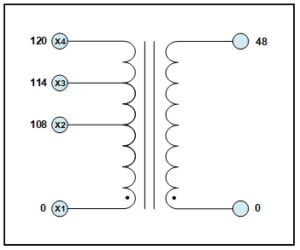

The schematic diagram is shown below. When input is 120 VAC, (X1 and X4) is selected. When input is 114 VAC, (X1 and X3) is selected. When input is 108 VAC, (X1 and X2) is selected.
