SINGLE PHASE MULTI TAP TRANSFORMER
7 KVA, P/N 19444
Specifications:
- Isolation Transformer, 7 KVA, 1 PH, 60 Hz, P/N 19444
- Primary (1, 2): 550 VAC, 12.7 Amps
- Secondary (3, 4): 270 VAC, 25.9 Amps
- Secondary (3, 5): 480 VAC, 14.5 Amps
- Copper winding construction
- Primary and secondary copper bus bars are 1/8″ x 5/8″ with one hole
- Open core & coil: 9″W x 9″H x 10″D
- Estimated weight: 125 lbs.

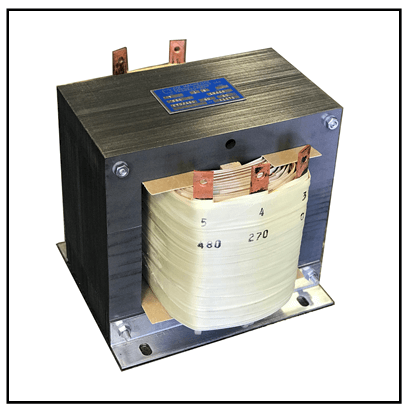

The photo of the transformer is shown below:

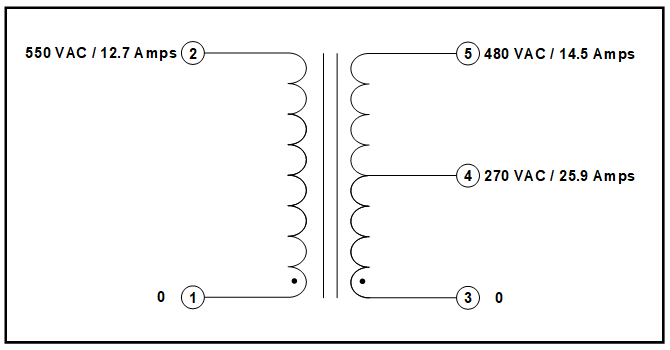

The schematic diagram is shown below:
