SINGLE PHASE MULTI TAP TRANSFORMER, 6 KVA, P/N 19355 - L/C Magnetics

SINGLE PHASE MULTI TAP TRANSFORMER
6 KVA, P/N 19355

Specifications:

Multi Tap Transformer, 6 KVA, 1 PH, 60 Hz, P/N 19355
Primary: 480 VAC, 125 Amps max
Secondary: 45 VAC / 89 Amps, 85 VAC / 47 Amps, 115 VAC / 35 Amps, 240 VAC / 25 Amps
Copper winding construction
Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
Open core and coil, 9”W x 9”H x 11”D approximately
Estimated weight: 110 lbs.

The photo of the transformer is shown below:

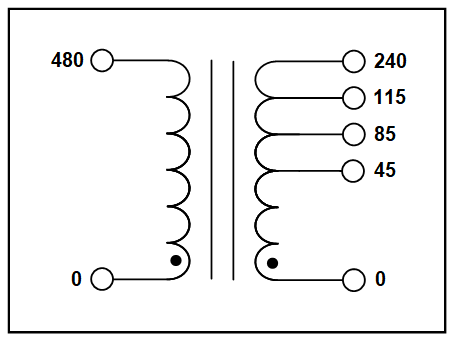

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
