SINGLE PHASE MULTI TAP TRANSFORMER
5 KVA, P/N 19541

Specifications:

Multi Tap Transformer, 5 KVA, 1 PH, 50 Hz, P/N 19541
Primary: 380 / 400 / 415 VAC, 13.2 Amps
Secondary: 120 VAC, 42 Amps
Copper windings
Primary and secondary connections are compression lugs
Open core and Coil: 9″W x 9″H x 10″D approximately
Estimated weight: 100 lbs.

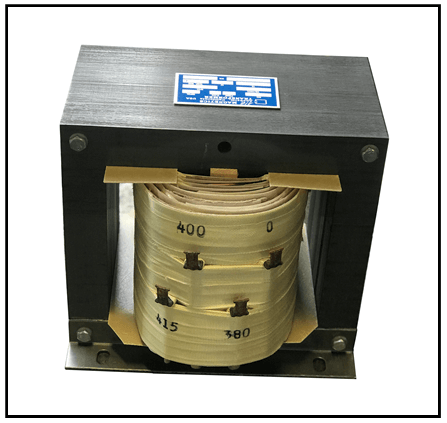

The photo of the transformer is shown below:

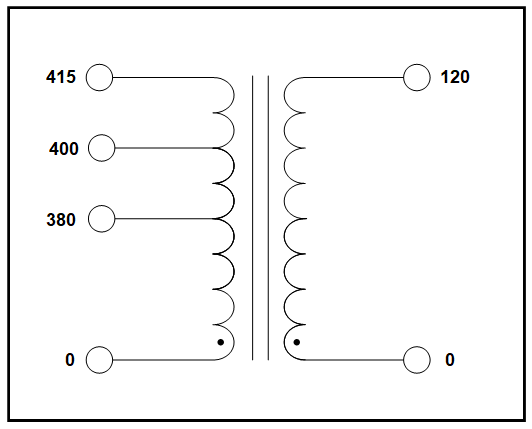

The schematic diagram is shown below:
