SINGLE PHASE MULTI TAP TRANSFORMER
2 KVA, P/N 19332
Specifications:
- Multi Tap Transformer, 2 KVA, 1 PH, 60 Hz, P/N 19332
- Primary: 210 VAC, 9.5 Amps
- Secondary: 48 / 50 / 52 / 54 VAC, 42 Amps max
- Copper winding construction
- Primary and secondary copper bus bars are 1/8” x 5/8” with one hole
- Open core and coil, 7.5”H x 7.5”W x 9”D approximately
- Estimated weight: 70 lbs.

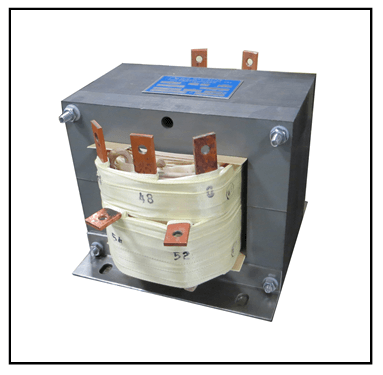

The photo of the transformer is shown below:

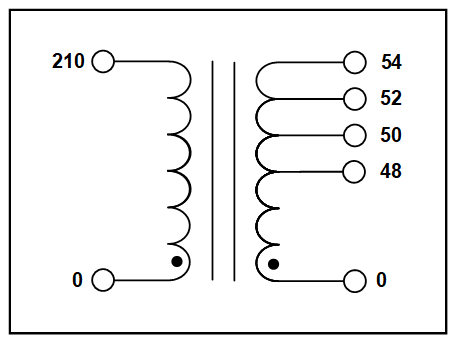

The schematic diagram of the transformer is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
