SINGLE PHASE MULTI TAP TRANSFORMER
2 KVA, P/N 18734A

Specifications:

• Multi Tap Transformer, 2 KVA, 1 PH, 60 Hz, P/N 18743A
• Primary: 480 VAC, 4.2 Amps max
• Secondary: 283 / 290 / 300 VAC, 7.1 Amps
• Copper windings
• Open core and Coil: 9″W x 9″H x 8″D approx.
• Copper bus bars are 1/8″ x 5/8″ with one hole
• Weight: 60 lb. approx.

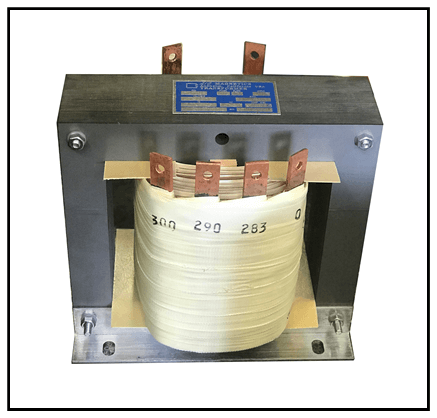

The photo of the transformer is shown below:

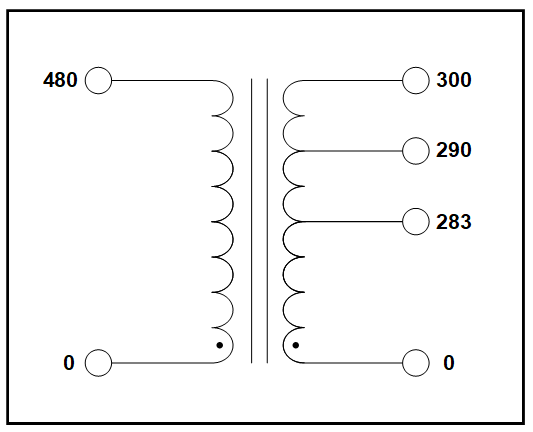

The schematic diagram is shown below:
