SINGLE PHASE MULTI TAP TRANSFORMER
2 KVA, P/N 19190N-1

Specifications:

• Multi Tap Transformer: 2 KVA, 1 PH, 60 Hz, P/N 19190N-1
• Primary: 480 / 600 / 690 VAC, 4.17 Amps max
• Secondary: 175 VAC, 11.4 Amps
• Copper winding construction
• Primary and secondary copper bus bars are 1/8″ x 5/8″ with one hole
• Indoor enclosure with louver: 17″L x 9.5″W x 9.5″D approximately
• Estimated weight: 95 lbs.

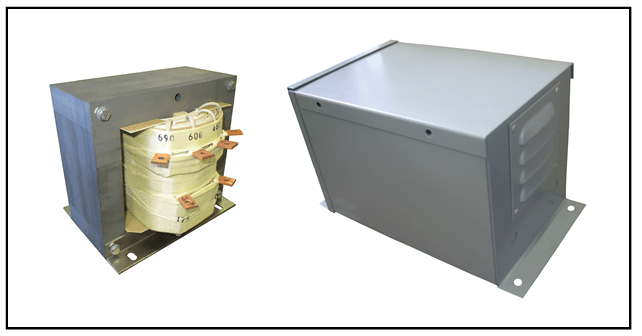

The photo of the transformer and the enclosure is shown below:

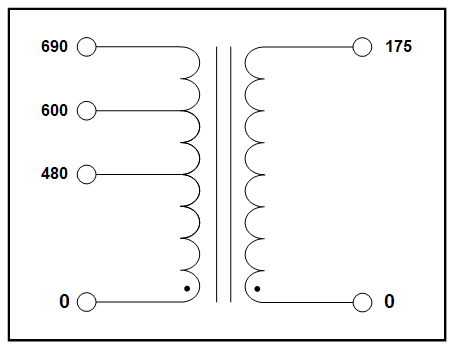

The schematic diagram is shown below:
