SINGLE PHASE MULTI TAP TRANSFORMER, 10 KVA, P/N 19169N - L/C Magnetics

SINGLE PHASE MULTI TAP TRANSFORMER
10 KVA, P/N 19169N

Specifications:

Multi Tap Transformer, 10 KVA, 1 PH, 60 Hz, P/N 19169N
Primary: 208 VAC, 50 Amps
Secondary: 50 VAC, 200 Amps
Secondary: 60 VAC, 167 Amps
Secondary: 70 VAC, 143 Amps
Copper winding construction
Primary bus bars are 1/8″ x 5/8″
Secondary bus bars are 1″ x 1/4″ with one hole
Indoor enclosure: 24”H x 18”W x 16”D

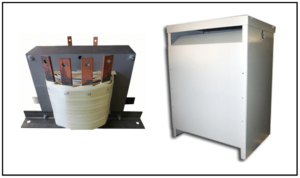

The photo of the transformer and the enclosure is shown below is shown below:

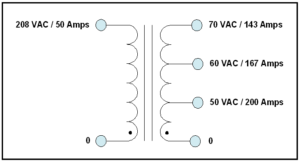

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
