SINGLE PHASE MULTI TAP TRANSFORMER
1 KVA, P/N 19395

Specifications:

• Isolation Transformer, 1 KVA, 1 PH, 50/60 Hz, P/N 19395
• Primary: 277 / 220 VAC, 4.5 Amps max
• Secondary: 120 VAC, 8.3 Amps
• Copper winding construction
• Primary and secondary copper bus bars are 1/8″ x 5/8″ with one hole
• Open core & coil: 7.50″W x 6.75″H x 6.25″D
• Mounting dimensions: 5.25”W x 4.50”D, 4 slots: 3/8”W x 5/8”D
• Estimated weight: 40 lbs.

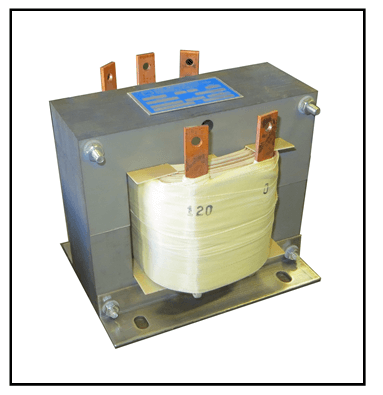

The photo of the transformer is shown below:

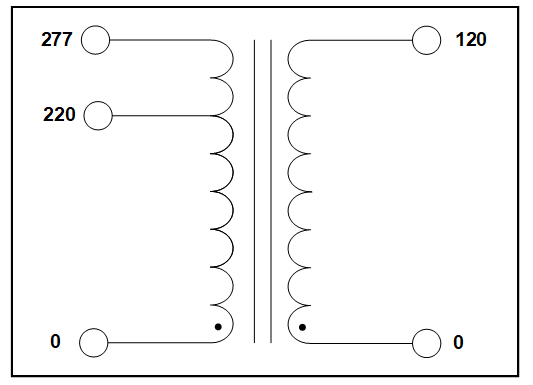

The schematic diagram is shown below:
