SINGLE PHASE MULTI TAP TRANSFORMER
1 KVA, P/N 19556
Specifications:
- Multi Tap Transformer, 1 KVA, 1 PH, 50/60 Hz, P/N 19556
- Primary: 415/480 VAC, 2.4 Amps
- Secondary: 850 VAC, 1.18 Amps
- Copper windings
- Approvals: None
- Primary and secondary connections are J lugs
- Open core and Coil: 7.5″W x 6.5″H x 7.0″D approximately
- Estimated weight: 40 lbs.

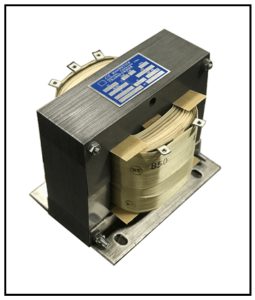

The photo of the transformer is shown below:

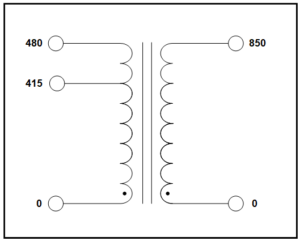

The schematic diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
