SINGLE PHASE MULTI TAP TRANSFORMER, 1 KVA, P/N 19528 - L/C Magnetics

SINGLE PHASE MULTI TAP TRANSFORMER
1 KVA, P/N 19528

Specifications:

Multi Tap Transformer, 1 KVA, 1 PH, 60 Hz, P/N 19528
Primary: 120 VAC, 8.33 Amps
Secondary: 5.6 / 16.8 VAC, 60 Amps
Copper windings
Primary connections are J lugs
Secondary copper bus bars are 1/8” x 5/8” with one hole
Open core and Coil: 7.00″W x 4.75″H x 6.00″D approximately
Estimated weight: 25 lbs.

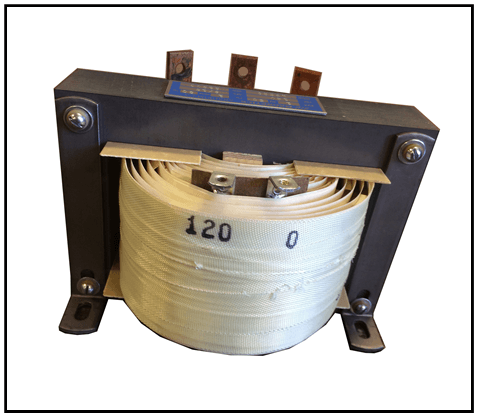

The photo of the transformer is shown below:

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
