SINGLE PHASE MULTI TAP TRANSFORMER
0.7 KVA, P/N 19565

Specifications:

Multi Tap Transformer, 0.7 KVA, 1 PH, 60 Hz, P/N 19565
Primary (1, 2): 120 VAC, 6 Amps
Secondary (3 to 7): 120 / 220 / 277 / 347 VAC
Copper windings
Primary and secondary connections are J-lugs
Open core & coil: 7.5″W x 6.25″H x 6″D
Approvals: None
Estimated weight: 35 lbs.

The photo of the transformer is shown below:

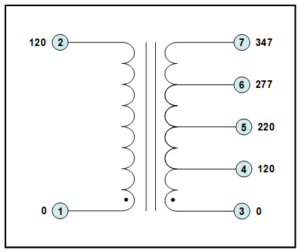

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
