SINGLE PHASE MULTI TAP TRANSFORMER, 0.5 KVA, P/N 19535 - L/C Magnetics

SINGLE PHASE MULTI TAP TRANSFORMER
0.5 KVA, P/N 19535

Specifications:

Multi Tap Transformer, 0.5 KVA, 1 PH, 60 Hz, P/N 19535
Primary (1, 2): 120 VAC, 4.25 Amps
Secondary (3, 4, 5, 6): 180 / 230 / 290 VAC, 2.78 Amps
Copper windings
Primary and secondary connections are solder lugs
Open core and Coil: 5.25″W x 4.25″H x 5.00″D approximately
Estimated weight: 20 lbs.

The photo of the transformer is shown below:

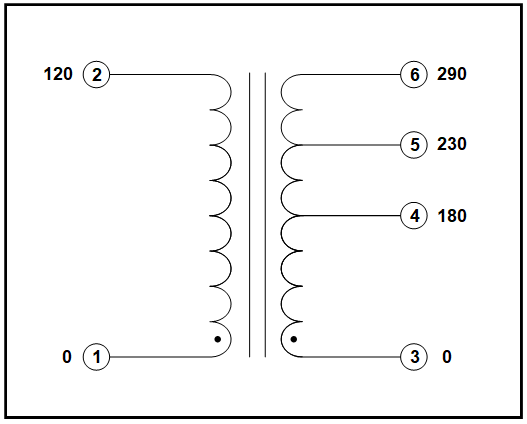

The schematic diagram is shown below:
