SINGLE PHASE MULTI TAP TRANSFORMER
4 KVA, P/N 19437

Specifications:

Multi Tap Transformer, 4 KVA, 1 PH, 60 Hz, P/N 19437
Primary: 240 VAC, 16.7 Amps
Secondary (1 to 6): 55.2 / 62.1 / 69 / 75.9 / 82.8 VAC, 67 Amps max
Copper winding construction
Primary and secondary copper bus bars are 1/8″ x 5/8″ with one hole
Open core & coil: 9″W x 9″H x 10″D
Estimated weight: 75 lbs.

The photo of the transformer is shown below:

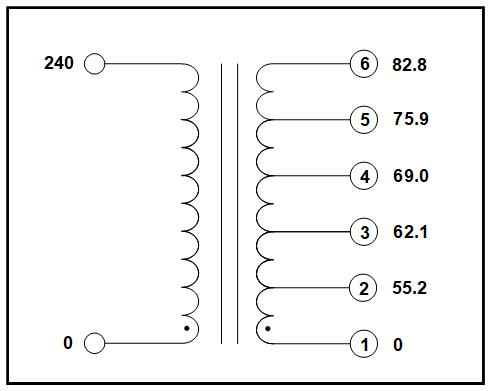

The schematic diagram is shown below:
