SINGLE PHASE ISOLATION TRANSFORMER

FOR OIL IMMERSED ENVIRONMENT, 2 KVA, P/N 19033

Specifications:

  • Isolation Transformer: 2 KVA, 1 PH, 60 Hz, P/N 19033
  • Primary: 240 VAC, 8.4 Amps
  • Secondary: 960 VAC, 2.1 Amps
  • Copper bus bar: 1/8” x 5/8” with one hole
  • Open core and coil: 9”H x 9”W x 7”D
  • Weight: 55 lbs approximately
  • All material is suitable for oil immersed environment.

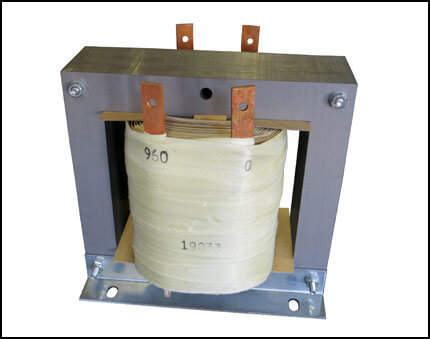

The photos of the transformer is shown below:



19033_IT

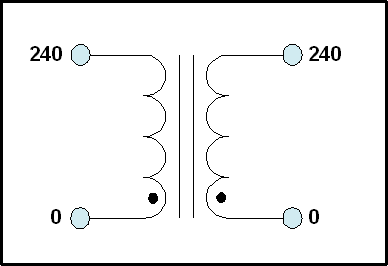

The schematic diagram is shown below:



19033_IT



To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
