SINGLE PHASE ISOLATION TRANSFORMER
3.6 KVA, P/N 19309N

Specifications:

  • Isolation Transformer, 3.6 KVA, 1 PH, 60 Hz, P/N 19309N
  • Primary (X1, X2): 120 VAC, 30 Amps
  • Secondary (Y1, Y2): 120 VAC, 30 Amps
  • Copper winding construction
  • Primary / Secondary copper bus bars 1/8” x 5/8” with one hole
  • Indoor enclosure with louver: 17”L x 9.5”W x 9.5”H
  • Estimated weight: 80 lbs.

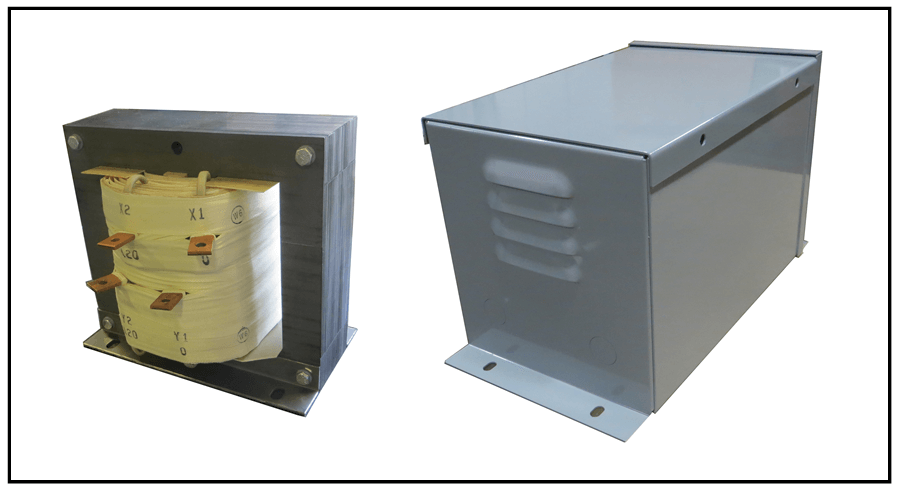

The photo of the transformer and the enclosure is shown below:





The schematic diagram is shown below:



single-phase-isolation-transformer-schematic-diagram



To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
