SCOTT T TRANSFORMER
0.25 KVA, P/N 19067

Scott T Transformers offer two single-phase outputs and not one single-phase output.

Scott T Transformers cannot be used to create only one single-phase output.

Specifications:

  • Scott T transformer, 0.25 KVA, P/N 19067
  • Input: 208 VAC, 3 PH, 60 HZ, (H1, H2, H3)
  • Output (MAIN): 120 VAC, 1 Amp, 0.125 KVA, (X1, X2)
  • Output (TEASER): 120 VAC, 1 Amp, 0.125 KVA, (Y1, Y2)
  • Open core and coil
  • MAIN and TEASER inputs should be 90 degree out of phase.
  • Jumper is provided with the unit.

The photo of the Scott transformer is shown below:



19067_ST

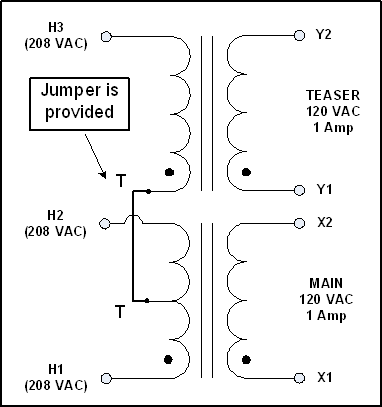

The schematic diagram is shown below:



19067_ST
