SCOTT T TRANSFORMER
10 KVA, P/N 18552N

Scott T Transformers offer two single-phase outputs and not one single-phase output.

Scott T Transformers cannot be used to create only one single-phase output.

Specifications:

  • Scott Connected Transformer, 10 KVA, P/N 18552N
  • Input: 200 VAC, 3 PH, 47 HZ
  • Output: MAIN: 230 VAC, 22 Amps, 1 PH
  • Output: TEASER: 230 VAC, 22 Amps, 1 PH
  • Indoor enclosure: 36” H x 28” W x 18” D
  • MAIN and TEASER are 90° out of phase.
  • T1/T2 Jumper is provided with the unit.

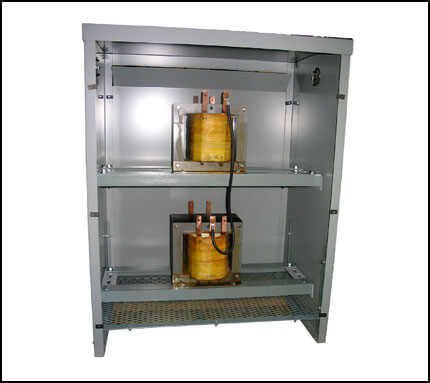

The photo of the Scott connected transformer is shown below:



18552N_ST

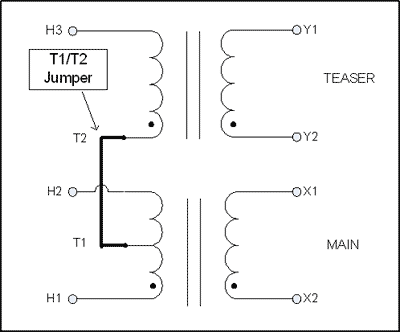

The schematic is shown below. MAIN and TEASER outputs must not be connected in series or in parallel:



18552N_ST
