​SINGLE PHASE AUTO TRANSFORMER
4.8 KVA, INPUT 208 VAC, OUTPUT 240 VAC
PN 19282

Specifications:

  • Boost Transformer, 4.2 KVA, 1 PH, 60 Hz, P/N 19282N
  • Input: 208 VAC, 23 Amps
  • Output: 240 VAC, 20 Amps
  • Copper winding construction
  • Input/output copper bus bars are 1/8″ x 5/8″ with one hole
  • Indoor enclosure with one louver, 17”L x 9.5”H x 9.5”W
  • Estimated weight: 60 lbs.

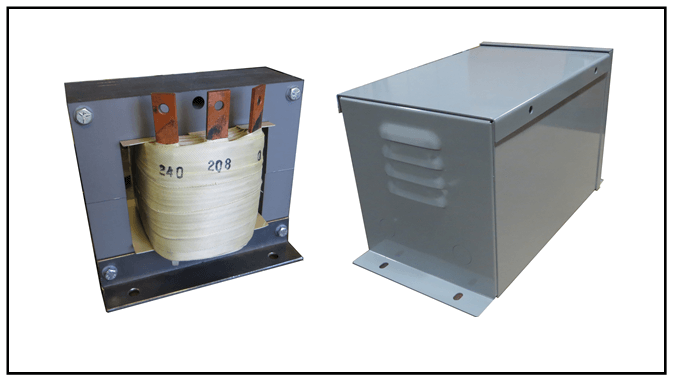

The photo of the boost transformer and the enclosure is shown below:

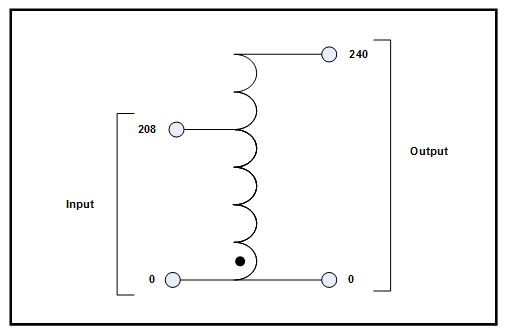

The details of the boost transformer are shown below:





All our buck boost transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
