DRY TYPE SUBSTATION TRANSFORMER 1500 KVA, PRIMARY 12000 VAC DELTA, SECONDARY 208 VAC WYE, ALUMINUM WINDING, P/N MG-288

Specifications:

• Dry Type Substation Transformer, 1500 KVA, 3 PH, 60 Hz, P/N MG-288
• Primary: 12000 VAC L-L, Delta
• Primary Taps: 2-2.5% FCAN and 2-2.5% FCBN
• Secondary: 208 VAC L-L Wye with a neutral, 120 VAC L-N
• Aluminum Windings
• Approvals: UL / CSA listed
• K Factor: K-1
• Temperature Rise: 150 degrees C
• Indoor Enclosure: 90″H x 90″W x 50″D
• Estimated weight: 8600 lbs.

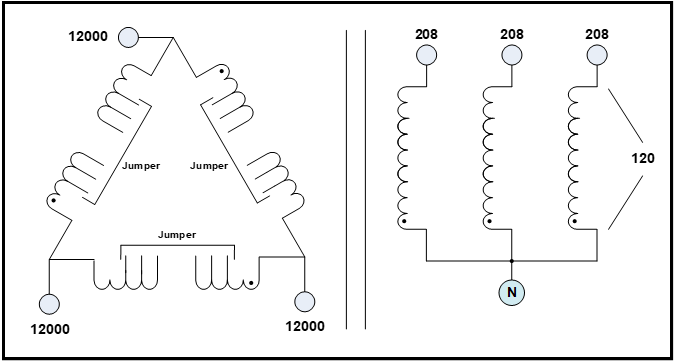

The schematic diagram is shown below:

The details of the enclosure are shown below:

The photo of the enclosure  is shown for reference:

All our transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
